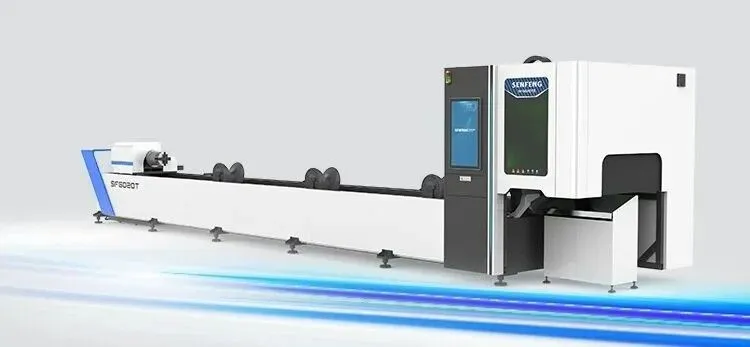

Metal Tube Laser Cutting Machine SF6020T
Have one to sell?
ConditionNew
New
SF6020T metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 20’* φ0.39″ -8.66″ .SF6020T affordable metal tube laser cutter is equipped with fiber laser device, laser power from 1.5kw to 6kw.
Power: 1,500 – 6,000 watts range (1.5kW-6kW)
Round Tube Diameter:Φ0.39″-8.66″
Square Tube Length: 0.39″*0.39″-5.9″*5.9″
Affordable Metal Tube Laser Cutting Machine SF6020T passed CE/FDA/ETL certifications.
Pipe Processing Range 10’* φ0.39″ ~8.66″ (Square tube: 0.39″ *0.39″ ~5.9″ *5.9″ )
Laser Power 1.5KW/2KW/3KW/4KW/6KW
Maximum Speed 328’/min
Maximum Rotational Speed 100rpm
Maximum Load Weight 330 lbs
X/Y Axis positioning accuracy ±0.05mm
X/Y Axis repeated positioning accuracy ±0.02mm
Maximum Acceleration 1.0G
SF6020T metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 20’* φ0.39″ -8.66″ .SF6020T affordable metal tube laser cutter is equipped with fiber laser device, laser power from 1.5kw to 6kw.
Power: 1,500 – 6,000 watts range (1.5kW-6kW)
Round Tube Diameter:Φ0.39″-8.66″
Square Tube Length: 0.39″*0.39″-5.9″*5.9″
Affordable Metal Tube Laser Cutting Machine SF6020T passed CE/FDA/ETL certifications.
Imperial
| Wattage | 6000 w |
| IPM | 328 |
| X | 0.002" |
| Y | 0.002" |
| Dimensions | 10′a∅0.39″ ~8.66″ (Square tube: 0.39″ *0.39″ ~5.9″ *5.9″) |
| Weight | 330 lbs |
Pipe Processing Range 10’* φ0.39″ ~8.66″ (Square tube: 0.39″ *0.39″ ~5.9″ *5.9″ )
Laser Power 1.5KW/2KW/3KW/4KW/6KW
Maximum Speed 328’/min
Maximum Rotational Speed 100rpm
Maximum Load Weight 330 lbs
X/Y Axis positioning accuracy ±0.05mm
X/Y Axis repeated positioning accuracy ±0.02mm
Maximum Acceleration 1.0G
