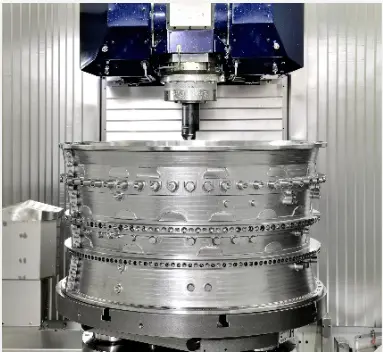

The horizontal machining center with 1600 mm X-axis stroke of the TANK EVO line
TANK 1600 EVO is characterized by the X-axis stroke of 1.600 mm and by the pallet dimensions: 800 x 1000 mm, 1.000 x 1.000 mm, Ø 1000 mm or
Ø 1.250 mm.
metric | imperial
TANK 1600 EVO
Axes Configuration 5-Axes Multitasking
Process Technology Milling, Turning, Grinding
Working Area
X-Axis Stroke - mm | in. - 1.600 | 63.0
Y-Axis Stroke - mm | in. - 1.400 / 1.500 | 55.1 / 59.1
Z-Axis Stroke - mm | in. - 1.560 / 1.960 | 61.4 / 77.2
X/Y/Z Axis Rapid Feed - m/min | ipm - 50 | 1,968.5
Pallet Option 1 - mm | in. - Ø 1.000 | Ø 39.3
Option 2 (2) - mm | in. - Ø 1.250 | Ø 49.2
Rotary Table (B-Axis) - Max. Rotation Speed - min-1 - 500
5th Axis (A-Axis) Type - Tilting Head
Tilting Angle - Degrees - 175 (+80/-95)
Spindle Unit - Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 6.000 up to 30.000
Tool-Magazine - Capacity (up to)1 - No. - 80 (999)
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
