New MCM TANK 1300 EVO | 5-Axes Horizontal Machining Center
Have one to sell?
ConditionNew
New

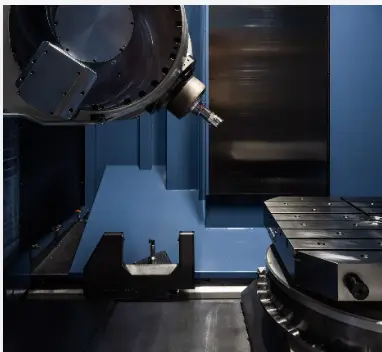

The horizontal machining center with 1300 mm X-axis stroke of the TANK EVO line
characterized by a volume of 1.300 mm and by the pallet dimensions: 630 x 800 mm, 800 x 800 mm, Ø 860 mm or Ø 1.000 mm.
metric | imperial
TANK 1300 EVO
Axes Configuration - 5-Axes
Process Technology - Milling
Working Area
X-Axis Stroke - mm | in. - 1.300 | 51.2
Y-Axis Stroke - mm | in. - 1.300 | 51.2
Z-Axis Stroke - mm | in. - 1.300 | 51.2
X/Y/Z Axis Rapid Feed - m/min | ipm - 50 | 1,968.5
Pallet
Option 1 - mm | in. - 630 x 800 | 24.8 x 31.5
Option 2 (2) - mm | in. - 800 x 800 | 31.5 x 31.5
Rotary Table (B-Axis) - Max. Rotation Speed - min-1 - 20/40
5th Axis (A-Axis) - Type – Tilting Head
Tilting Angle - Degrees – 175 (+80/-95)
Spindle Unit - Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 6.000 up to 30.000
Tool-Magazine - Capacity (up to)1 - No. - 80 (999)
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
