New MCM TANK 1900 EVO | 4-Axes Horizontal Machining Center
Have one to sell?
ConditionNew
New

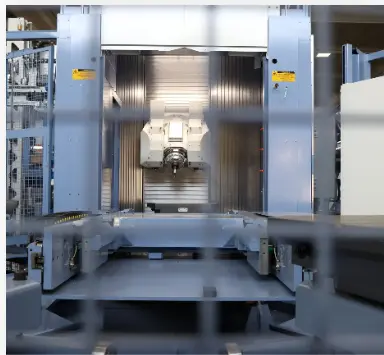

The horizontal machining center with 1900 mm X-axis stroke of the TANK EVO line
TANK 1900 EVO is the largest machining center in the TANK EVO line, characterized by the X-axis stroke of 1900 mm and by the pallet dimensions:
1000 x 1000 mm, 1250 x 1250 mm, Ø 1250 mm or Ø 1400 mm.
metric | imperial
TANK 1900 EVO
Axes Configuration - 4-Axes
Process Technology - Milling
Working Area
X-Axis Stroke - mm | in. - 1.900 | 74.8
Y-Axis Stroke - mm | in. - 1.400 | 55.1
Z-Axis Stroke - mm | in. - 1.960 | 77.2
X/Y/Z Axis Rapid Feed - m/min | ipm - 50 | 1,968.5
Pallet
Option 1 - mm | in. - 1.000 x 1.000 | 39.3 x 39.3
Option 2 (2) - mm | in. - 1.250 x 1.250 | 49.2 x 49.2
Rotary Table
(B-Axis) Max. Rotation Speed - min-1 - 20 / 40
5th Axis (A-Axis)
Type - –
Tilting Angle Degrees - –
Spindle Unit
Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 6.000 up to 30.000
Tool-Magazine
Capacity (up to)1 - No. - 80 (999) 80 (999) 80 (999)
Available Configurations
Single-Pallet /Twin-Pallet / Multipallet / FMS
