Uniaxle
Rear axle machining in a single setup
> to the greatest precision
> in the shortest possible time

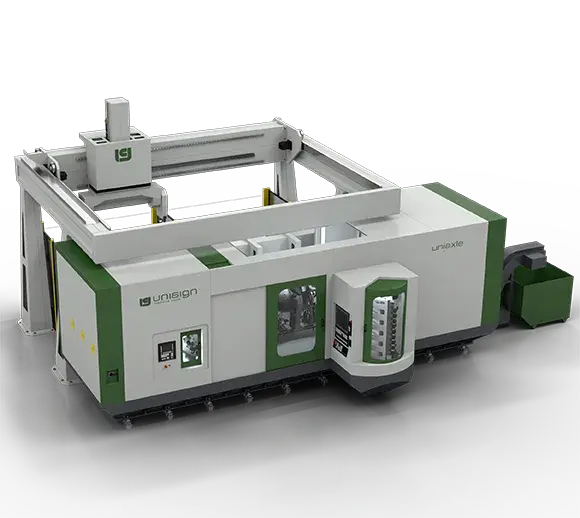

Our UNIAXLE is a revolutionary new CNC machine for machining welded and cast truck rear axles!
You can machine complete truck rear axles in just one set up on ONE single machine. It’s faster, more accurate and saves you money. You won’t need so many different machines, thus saving space on the shop floor. The UNIAXLE CNC machine is universal and can machine a wide variety of rear axles.
Turning head
Z-axis 750 mm
Radial axis (x-axis) 100 mm
Spindle power 29,3 kW (S1-100%) | 37,5 kW (S6-40%)
Spindle torque 1000 Nm (S1-100%) | 1280 Nm (S6-40%)
Spindle speed 630 min-1
Tool taper Capto 6
Number of tool pockets 12
Tool change time 9 sec
Milling/drilling spindle
X-axis 700 mm
Y-axis 700 mm
Z-axis 1250 mm
Spindle power 52,4 kW (S1-100%) | 56 kW (S6-40%)
Spindle torque 1000 Nm (S1-100%) | 1375 Nm (S6-40%)
Spindle speed 4000 min-1
Tool taper Capto 6
Number of tool pockets 24
Tool change time 9 sec
Axis drive and feed system
Rapid / feed rate X,-Y-,Z-axis 40.000 mm/min
Automatic loading
Unloading/loading in 60 sec
Overhead loading crane with double gripper
Input and discharge station
Various
Fully enclosed working environment
Vacuum extraction with filter unit
Measuring probe
Integrated chip conveyor
Siemens 840D-sl control
Touch screen
Remote access
