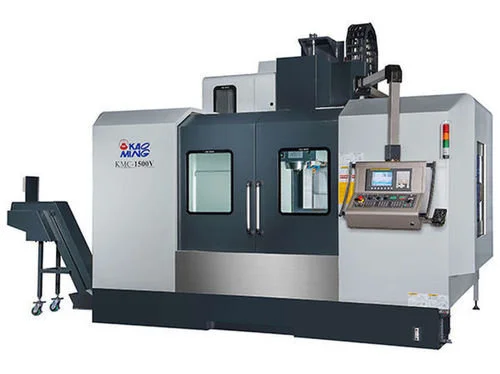

New KAO MING KMC-1500V | Vertical Machining Centers
Have one to sell?
ConditionNew
New
Features：
- High rigid construction four slideways on base, ensures high precision machining accuracy.
- A 11 kw / 15 kw (15 HP / 20 HP) spindle motor with 2-step gear transmission provide a high revolution up to 4400 rpm.
- The spindle is supported by grease packed precise angular contact ball bearing to minimize heat generation.
- The lubricant for both spindle and the gear box is forced-cooled by the standard oil cooling system to ensure protection from thermal displacement.
- The 24-station rotary-type tool magazine is driven by a cam unit (KMC-1100V)
- The 32-station chain-type tool magazine is driven by an electric motor (KMC-1500V)
- A universal angle head (optional) can widely extend machining application.
Features：
- High rigid construction four slideways on base, ensures high precision machining accuracy.
- A 11 kw / 15 kw (15 HP / 20 HP) spindle motor with 2-step gear transmission provide a high revolution up to 4400 rpm.
- The spindle is supported by grease packed precise angular contact ball bearing to minimize heat generation.
- The lubricant for both spindle and the gear box is forced-cooled by the standard oil cooling system to ensure protection from thermal displacement.
- The 24-station rotary-type tool magazine is driven by a cam unit (KMC-1100V)
- The 32-station chain-type tool magazine is driven by an electric motor (KMC-1500V)
- A universal angle head (optional) can widely extend machining application.
Imperial
| X | 60.2" |
| Y | 29.52" |
| Z | 31.5" |
| Power | 25 hp |
| RPM | 6,000 RPM |
